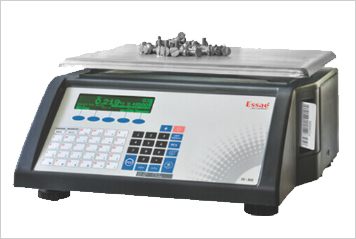

DC-810/815 Counting Scale
Special Feature:
- Bright LCD display with green LED back light High contrast display for easy viewing in any lighting conditions
- Alphanumeric Keyboard for easy navigation Dual weighing platform connectivity
- Easy loading of label roll Less wastage of labels during calibration
- Wi-Fi LAN Connectivity enables seamless Integration with Customer's ERP Systems.

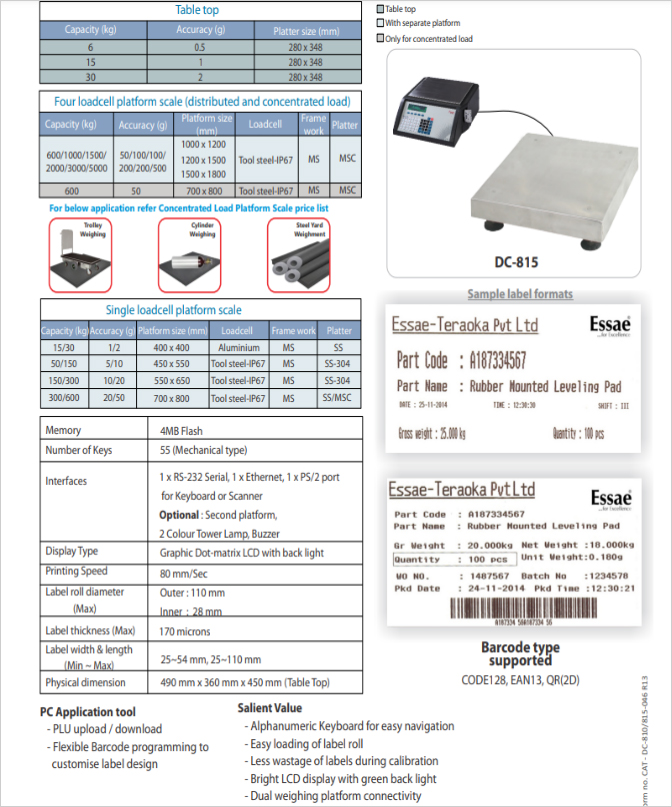

Technical Specifications:
| Memory | 4MB Flash |
| Number of Keys | 55 (Mechanical type) |
| Interfaces | 1 x RS-232 Serial, 1 x Ethernet Optional : Second platform, 2 Colour Tower Lamp, Buzzer |
| Display type | Graphic Dot-matrix LCD with back light |
| Printing Speed | 80 mm/sec |
| Label roll diameter (max) | Outer : 110 mm Inner : 28 mm |
| Label thickness (max) | 170 microns |
| Label width & length (min-max) |
25~54 mm, 25~110 mm |
| Physical dimension | 490 mm x 360 mm x 450 mm (Table Top) |
