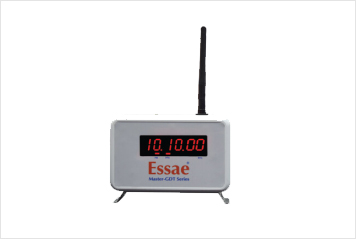

GPS Master Clock
![GPS Master Clock](images/dgt-57-6-LED-display.jpg)
Special Feature:
- Receives atomic time from network of GPS satellites.
- Re-transmits the time to clocks through wireless RF frequency band of 866MHz.
Advantages:
- 300m (line of sight) depends on site conditions.
- Needs to be installed in a location with easy/direct access to the sky.
Technical Specifications:
Enclosure | HIPS plastic |
Dimension (LxHxD) | 147x213x46 (mm) with antenna |
Others | GPS receiver module |
RF Transmitter | 866MHz wireless transmitter |
Internal RTC Accuracy | ± 1 sec accuracy |
RF Coverage (max) | 400 m range (Line of Sight) |
GPS CLOCKS
General Details
Model | Display Height(mm) | Dimension | Remarks |
GDT-57 | 57 | 290 x 93 x 36 | HIPS (plastic) |
GDT-57SS | 307 x 117 x 37 | SS-304 | |
GDT-57FLP | 350 x 199 x 89 | Flame Proof enclosure with SS-304 cover | |
GDT-57-6 | 421 x 117 x 31 | SS-304, HH:MM:SS | |
GDT-100SS | 100 | 500 x 180 x 39 | SS-304 |
GDT-100FLP | 595 x 292 x 101 | Flame Proof enclosure with SS-304 | |
GDT-100-6 | 614 x 180 x 39 | SS-304, HH:MM:SS |
![dgt-57-6-LED-display](images/dgt-57-6-LED-display-1.jpg)

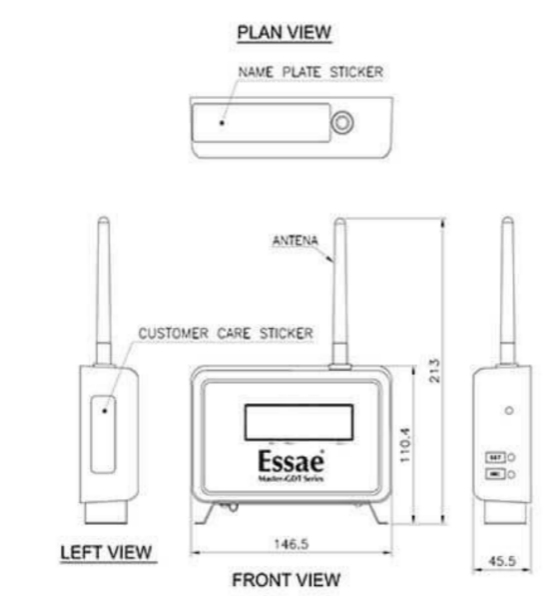

Schematic Diagram
![dgt-57-6-LED-display](images/dgt-57-6-LED-display-2.jpg)
