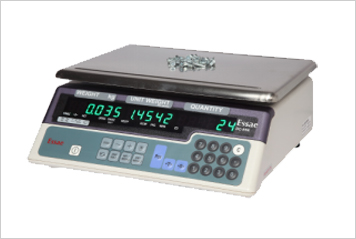

DC-85N/DC-851N Counting Scale


DC-85N/DC-851N Counting Scale

Special Feature:

  • Gross/Net weight display with indication
  • Re-chargeable Lithum Ion battery 7.4V/2.2AH
  • Accumulation of Quantity and Weight
  • Check Counting & Check Weighing

Advantages / Accessories :

  • TM-U220D Dot Matrix Printer, Serial
  • Set point (External)
  • MS roller (only for 300 & 600 kg cap with 700 x 800 platform)
  • RS-232 Interface
  • Back rail for 700x800 (for 300kg/600kg - DC 815N)
  • Display hold function


  • Check Counting & Check Weighing

Technical Specifications:

Power Supply 230V AC, 50 Hz, +/-10%
Power Consumption 11W
Operating temperature/humidity 0°C to 45°C / 85%Rh (Non-condensing)
Console Dimensions (Width x Depth X Height) 304(w) x 295(d) x 115(h) mm.
Net Weight 3.7 Kg (Approx.)
Display type LED
Display digit Weight 6 digits, Unit weight 5 digits, quantity 6 digits.
Display size 14mm
Number of keys 4 keys (10 Numeric keys,14 Function keys)
Battery charger In-built
Battery Re-chargeable Lithium-Ion battery 7.4V/2.2AH
